RE5050D Reflow Explorer

回流焊热学性能评测系统

Evaluate the full thermal performance of a reflow oven in 15 minutes — so you can double equipment life and fully optimize the process. The Reflow Explorer pairs differential heat-capacity modules, the R9E3 data recorder and ERES analysis software to benchmark an oven’s real thermal behavior, not just a single board.

Pricing: Request a Quote

Request a Quote → Jump to specs

At a glance

30-channel temperature recording + 3 expansion channels (load compensation / convection velocity / chain temperature)
Heat-capacity modules represent the thermal-mass variation of real production components
Heat-resistant load board evaluates equipment thermal performance in the live production state
One-click report quantifies oven thermal performance across many dimensions

Channels

30 + 3

Accuracy

±0.5 ℃

Evaluation time

15 min

Software

ERES

Overview

A dedicated tester for reflow thermal performance

The RE5050D Reflow Explorer is a purpose-built instrument for evaluating the thermal performance of reflow ovens. The standard tester is built primarily from heat-capacity modules of differing thermal mass — specified to characterize the heat-capacity differences of the various components found in real production. Combined with the R9E3 data recorder, a standard thermal load board and ERES analysis software, it performs a comprehensive process-capability test and analysis of hot-air reflow soldering equipment.

In about 15 minutes it completes a fast, effective evaluation of an oven’s thermal efficiency — used for new-oven acceptance, equipment assessment, rational machine-to-product allocation and scheduling, and to guide energy-saving / emission-reduction and maintenance decisions.

System function

What the evaluation delivers

Assess new oven equipment before it goes into production
Rationally allocate machines to products and configure capacity optimally
Optimize process settings (atmosphere & temperature parameters)
Plan maintenance from quantified aging trends
Optimize energy consumption and reduce emissions
Extend equipment life and protect the asset

Features

Built to characterize the whole oven

Complete evaluation system: R9E3 data recorder, standard thermal load board and ERES analysis software
Heat-capacity modules characterize the thermal-mass variation of real production components
Thermal-efficiency analysis: uniformity, symmetry, thermal-shock and stability across the oven
Hot-air convection strength analysis and chain-temperature fluctuation analysis
Empty/full-load and ambient-temperature thermal compensation analysis
Thermal-efficiency calibration and aging analysis over time
CPK capability analysis for peak temperature, hot-air convection and chain speed
30-channel temperature recording + 3 expansion channels (load / convection velocity / chain temp)
Heat-resistant load board evaluates thermal performance in the live production state
One-click automatic report — multi-dimensional, quantified oven thermal performance
15-minute evaluation extends equipment life, protects the asset and optimizes the process

Specifications

Technical parameters

Model	RE5050D
Dimensions	530 (L) × 500 (W) × 31.5 (H) mm
Channels	30 temperature recording + 3 expansion (empty/full load · hot-air convection velocity · chain temperature)
Thermocouple	Type K
Measuring range	0 ~ 350 ℃
Sampling rate	0.1 ~ 400 s, adjustable
Accuracy	±0.5 ℃
Resolution	0.1 ℃
Data interface	Universal USB 2.0
Battery	Rechargeable lithium battery
Software	ERES analysis software
OS	Windows 7 / 8 / 10 / 11
Languages	English · Simplified Chinese · Traditional Chinese

Specifications per manufacturer datasheet RE5050D V3.5. Subject to change without notice.

ERES analysis software

Quantified oven scoring

From the 30 + 3 channel data set, ERES automatically generates a multi-dimensional report: thermal-efficiency uniformity / symmetry / thermal shock, hot-air convection strength, stability, chain-temperature fluctuation, empty-vs-full-load and ambient-temperature compensation, and CPK capability for peak temperature, hot-air convection and chain speed. It can precisely display the corresponding air volume and heating temperature at any position inside the oven chamber — producing a quantified performance score for the oven.

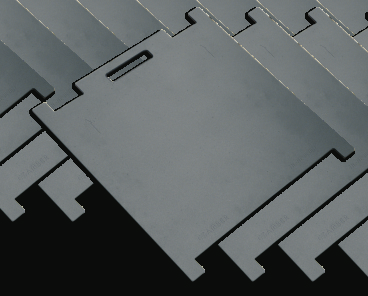

RE5050D differential heat-capacity modules — Differential heat-capacity modules replicate the thermal mass of real production components.

Datasheet

PDF

RE5050D Reflow Explorer V3.5

Full datasheet (CN)

Download ↓

English specification summary available on request — ask us.

Applications

Where it earns its keep

Comprehensive thermal-performance evaluation of reflow / hot-air reflow equipment
New-oven acceptance and equipment assessment
SMT line: machine-to-product allocation and optimal capacity configuration
Process optimization — atmosphere and temperature parameter tuning
Maintenance decisions and equipment aging-trend analysis
Energy saving & emission reduction — assess oven thermal efficiency, cut energy use

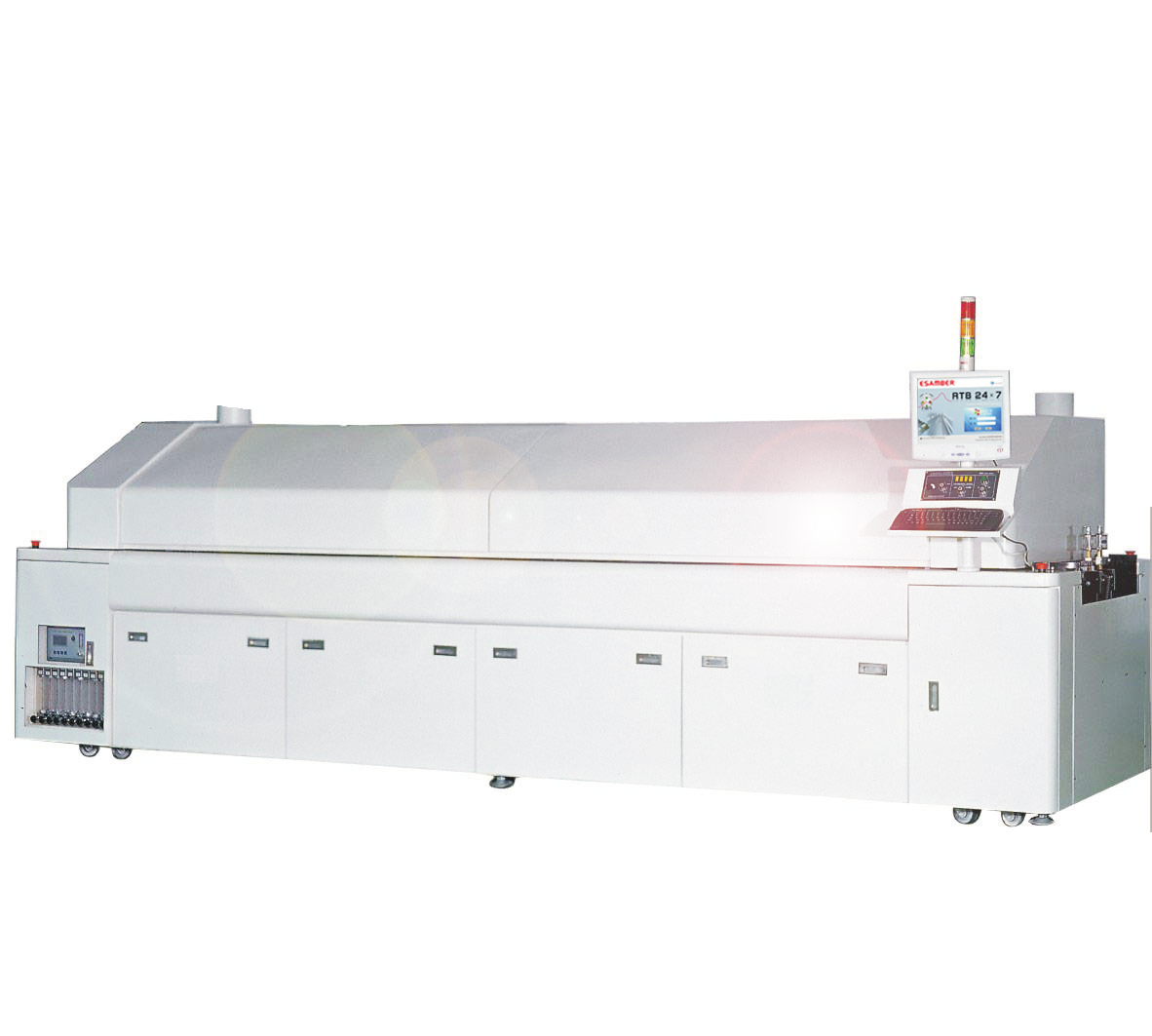

Reflow oven evaluated by RE5050D — The Reflow Explorer evaluates equipment thermal performance in the live production state — no need to take the oven offline.
